Description
Product name: llumination & Sterilization Wardrobe Lamp(Deluxe Ver.)
Input volt.: DC5V
Input watt:3W
lluminating CCT:3000K
Sterilizing wavelength:260-280nm
Application: Sterilization for wardrobe, shoe cabinet and other cabinets Killed bacteria: Colibacillus, staphylococcus aureus, chlamydia, mould, gemma, coronavirus, flu virus etc.
Patent no.:202020407191.4
Sterilizing time:5min.
Input volt.: DC5V
Input watt:3W
lluminating CCT:3000K
Sterilizing wavelength:260-280nm
Application: Sterilization for wardrobe, shoe cabinet and other cabinets Killed bacteria: Colibacillus, staphylococcus aureus, chlamydia, mould, gemma, coronavirus, flu virus etc.
Patent no.:202020407191.4
Sterilizing time:5min.

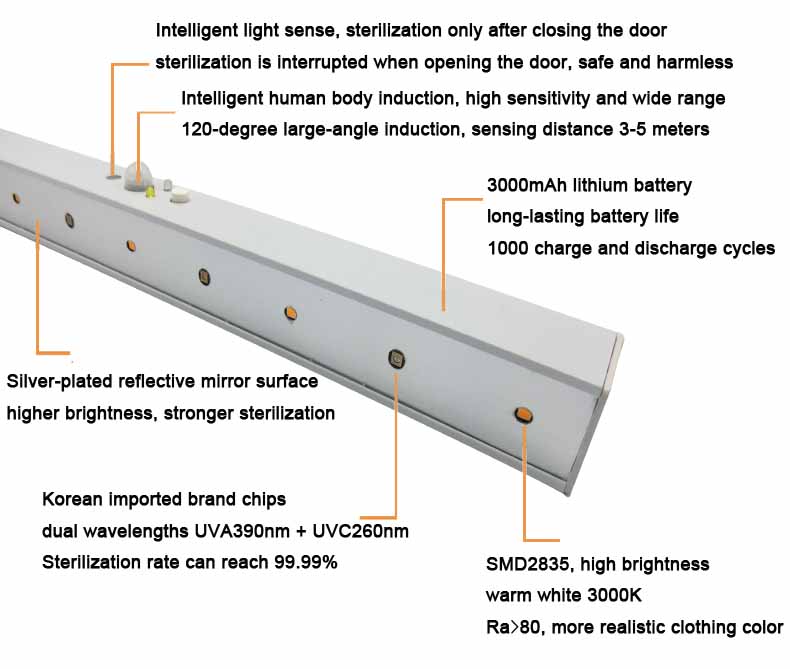

Product Selling Point

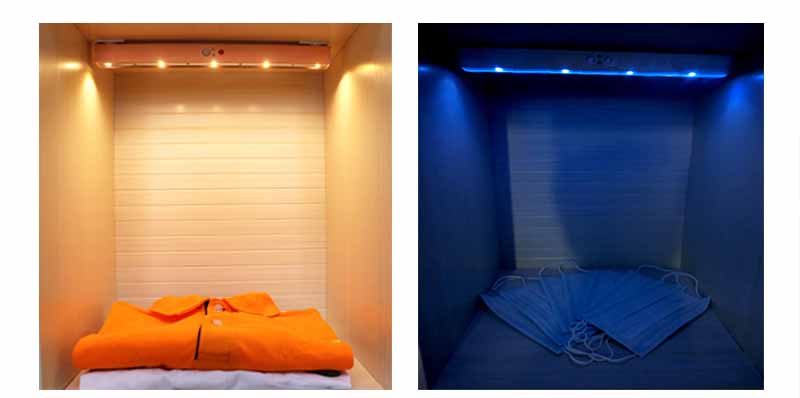

Application Scene
Usage instruction (Simple ver.)
1. Place the lamp flat on the table with the light facing down and the magnet facing up. Take out the iron sheet with the back glue facing up, and attach the iron sheet to the magnet.
2. Remove the back tape from the Metal Sheet, turn the switch face to the door, and glue the lamp to the top of the wardrobe.
3. Press switch, the yellow light and sterilizing lamp will flash 3 times alternately, prompting to enter the working state, then go into 10s delay, while close the door, or leave the sterilizing lamp irradiation area, after 10s, it will be sterilized 15mins.
|Usage instruction (Deluxe ver.)
1. Place the lamp flat on the table with the light facing down and the magnet facing up. Take out the iron sheet with the back glue facing up, and attach the iron sheet to the magnet.
2. Remove the back tape from the Metal Sheet, turn the switch face to the door, and glue the lamp to the top of the wardrobe.
3. Press switch, the yellow light and sterilizing lamp will flash 3 times alternately, prompting to enter the working state, once the door is open, human activity is detected, the luminating mode is on.
4. Luminating mode 10s delay off when after closing the door and detect if door is closed; When door is closed, sterilizing light will be on and sterilizing for 5mins; After sterilization, lamp is on standby, waiting for next time of door open.
5. During sterilizing process, when wardrobe door is opened, once human activity is detected, sterilization will be switch to lighting mode.
6. When battery is low, yellow light will flash; check power indicated light if flash when luminating light does not work or suddenly turned off.
7. When battery is low, switch off, take out the lamp and charge by DC5V charger or PC USB etc. The indicator light is red when charging and turn green when fully charged.
1. Place the lamp flat on the table with the light facing down and the magnet facing up. Take out the iron sheet with the back glue facing up, and attach the iron sheet to the magnet.
2. Remove the back tape from the Metal Sheet, turn the switch face to the door, and glue the lamp to the top of the wardrobe.
3. Press switch, the yellow light and sterilizing lamp will flash 3 times alternately, prompting to enter the working state, then go into 10s delay, while close the door, or leave the sterilizing lamp irradiation area, after 10s, it will be sterilized 15mins.
|Usage instruction (Deluxe ver.)
1. Place the lamp flat on the table with the light facing down and the magnet facing up. Take out the iron sheet with the back glue facing up, and attach the iron sheet to the magnet.
2. Remove the back tape from the Metal Sheet, turn the switch face to the door, and glue the lamp to the top of the wardrobe.
3. Press switch, the yellow light and sterilizing lamp will flash 3 times alternately, prompting to enter the working state, once the door is open, human activity is detected, the luminating mode is on.
4. Luminating mode 10s delay off when after closing the door and detect if door is closed; When door is closed, sterilizing light will be on and sterilizing for 5mins; After sterilization, lamp is on standby, waiting for next time of door open.
5. During sterilizing process, when wardrobe door is opened, once human activity is detected, sterilization will be switch to lighting mode.
6. When battery is low, yellow light will flash; check power indicated light if flash when luminating light does not work or suddenly turned off.
7. When battery is low, switch off, take out the lamp and charge by DC5V charger or PC USB etc. The indicator light is red when charging and turn green when fully charged.
